Service Accounts Preparation



This blog is part of Series : Comprehensive SharePoint 2013 Development Environment Installation and Configuration



Overview

Based on the Microsoft best practices and minimal security following service accounts are planned.

Account Type	Rights	Development
Install Account	Full administrator rights on all SharePoint and SQL servers. Will be disabled after install is completed.	SPSetup
SQL Service Account	If not already installed, domain account with no local rights above Domain User.	SqlService
Farm Administrator	SQL roles DBCREATOR and SECURITYADMIN.	SPFarmAdmin
Application Pool	One account per application. For example one per intranet, extranet and public website. No local rights or SQL rights above Domain User.	SPPortal SPMySite SPSearchCenter
Services	No local rights or SQL rights above Domain User.	SPServices
Search Agent	No local rights or SQL rights above Domain User.	SPSearch
Search Crawl Access	No local rights or SQL rights above Domain User.	SPCrawl
Profile Access	No local rights or SQL rights above Domain User. Provision Replicating Directory Changes permission (refer below)	SPProfileSync
Cache Admin	No local rights or SQL rights above Domain User.	SpCacheSuperUser
Cache Reader	No local rights or SQL rights above Domain User.	SpCacheSuperReader
Claims to Windows Service account	No local rights or SQL rights above Domain User	SPC2WTS
SSRS Service	No local rights or SQL rights above Domain User	SPSSRS
Excel Service User	No local rights or SQL rights above Domain User	SPExcelUser
Performance Point Service user	No local rights or SQL rights above Domain User	SPPerfPointUser



So I created the below Service Account Users  in QA ( Under a dedicated OU just to keep away from the standard user accounts)

Replicating Directory Changes permission to the Profile Service account.

We need to grant the Replicating Directory Changes permission on the domain to the Profile service account. This is the account that will be used to perform the sync.

The steps are as follows:

1. Run Active Directory Users and Computers tool
2. Right Click the Domain, choose Delegate Control… click Next

1. Add the service account in question, click Next

1. Select Create a Custom Task to Delegate, click Next and Next

1. Click Next

1. Select the Replicating Directory Changes permission and click Next

1. Click Finish

This is part of the solution, we also need to grant replicating directory changes on the Configuration Naming Context for the domain using the ADSIEdit.msc management console.

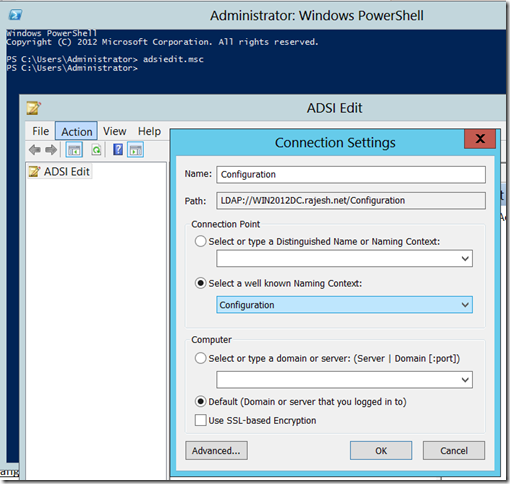

1. Connect to the Configuration Partition  (Below picture is from my old domain so ignore the names in Path)

1. Right click the configuration partition and choose properties

1. From the Security tab, add the service account and give it Replicating Directory Changes permissions

This should conclude the required AD changes.

Implement DNS names for Web Applications

Following Web Applications are planned with the respective DNS and IP addresess

App	DNS	IP
Portal Web Application	Portal.mydomain.com	192.168.1.37 (Pointing to SP2013WFE)
My Site Web Application	MySite.mydomain.com	192.168.1.37 (Pointing to SP2013WFE)
Search Center Wep Application	Search.mydomain.com	192.168.1.37 (Pointing to SP2013WFE)



First create new Zone

Now create new CNAME

Likewise for MySite

Likewise for Search

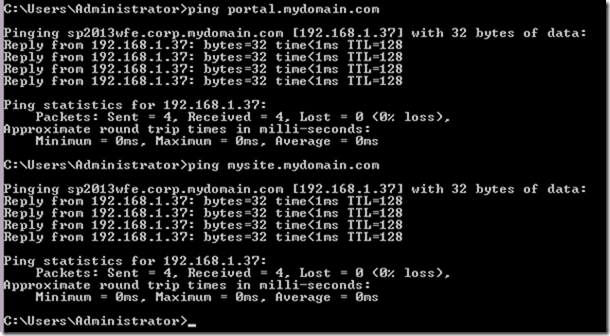

Let's test



Create Test User

While we are here, lets create few test user accounts.
